The Enigma Shape project aims to bring together multiple datasets for a fine-grained analysis of cortical and subcortical surfaces.

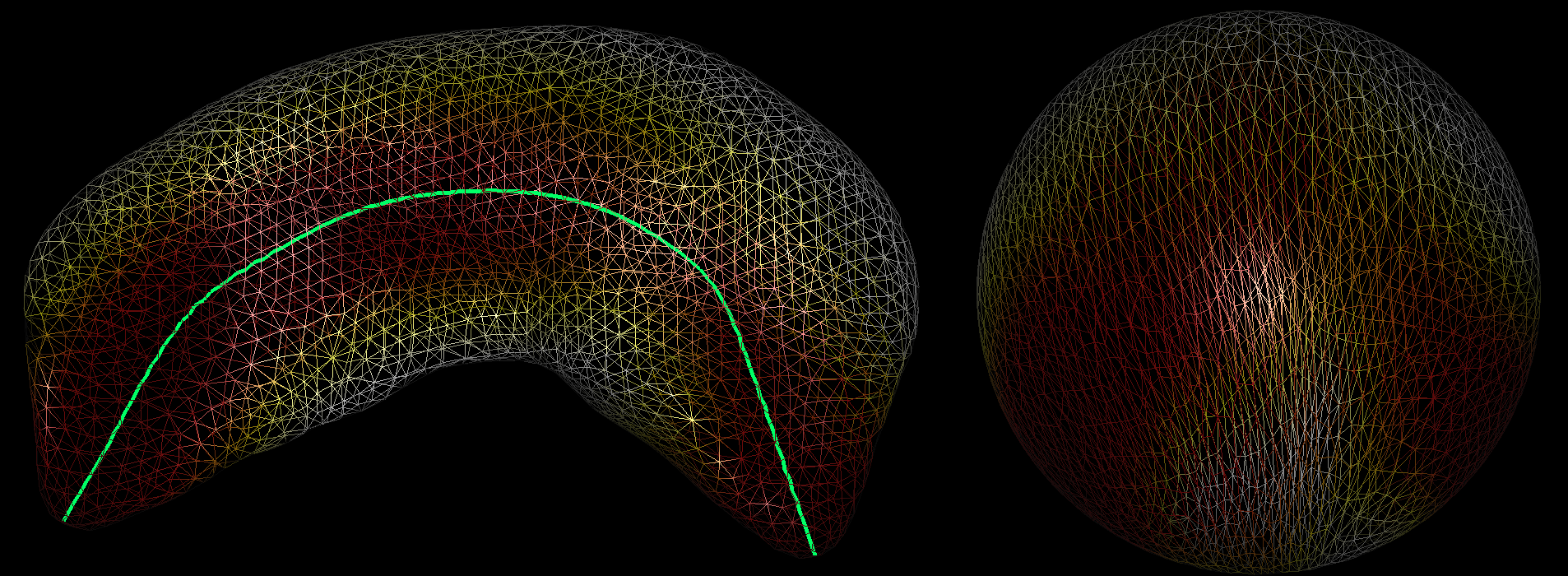

Our subcortical shape pipeline is based on a medial-spherical analysis described here (Gutman et al., 2012, ISBI). The pipeline for Linux execution and corresponding shape atlases can be sent by request. This is a set of perl scripts which require a FreeSurfer .aseg file to generate the surface mesh model. Please send requests to Boris Gutman at bgutman@gmail.com

For questions about the subcortical project, please email Boris Gutman at bgutman@gmail.com or Lei Wang at leiwang1@northwestern.edu

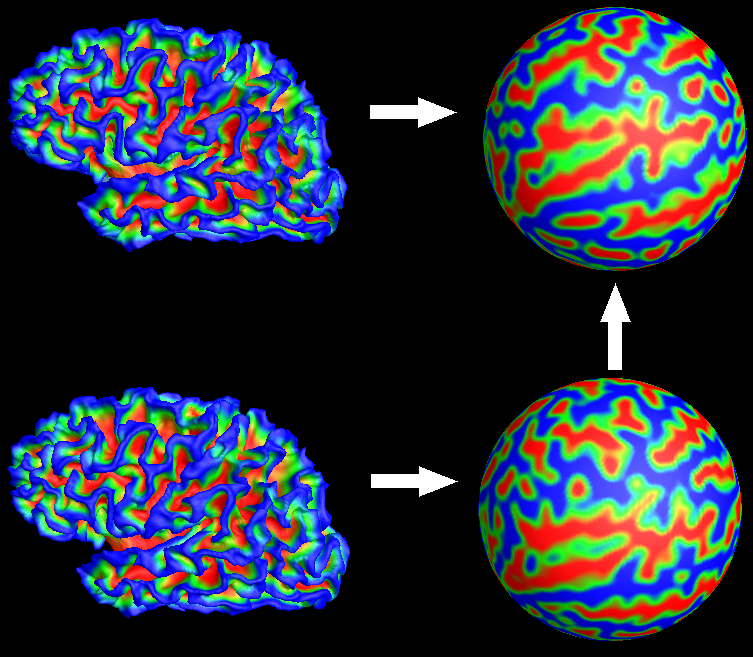

Cortical analysis is based on the fast spherical fluid registration (Gutman et al., 2013, MBIA). A downloadable set of scripts is coming soon.

For questions about the cortical project, please email Boris Gutman at bgutman@gmail.com

Check out the ENIGMA-Shape working group’s abstract for the upcoming Society for Neuroscience (SfN) conference, below.

Striatal and Thalamic Shape Alterations due to Parkinson’s Disease

Parkinson’s disease (PD) is a progressive neurological motor related disorder, characterized by trouble initiating movement, resting tremors, slowness of movement and muscular stiffness [1]. Volumetric analysis of the brain images tends not to reveal subtle changes in structure for patients with PD. Alternatively, shape analysis of subcortical region boundaries may reveal more subtle, localized effects. In this study, we used a medial demons surface registration and shape analysis of 7 subcortical regions: amygdala, nucleus accumbens, putamen, caudate, globus pallidus, hippocampus, and thalamus. Following shape registration, two surface measures – thickness and dilation ratio (Jacobian Determinant) – were used to quantify local shape differences [2].

The data were obtained from the Parkinson’s Progressive Markers Initiative (PPMI) (116M:68F healthy controls and 264M:142F PD subjects. Subcortical parcellations were obtained using Freesurfer 5.3. Mass-univariate test for group difference between controls and PD subjects was performed, controlling for age, gender, ICV and handedness. Shape signatures of the following regions were significantly different after False Discovery Rate (FDR) correction for multiple comparisons (critical q in parentheses, higher implies greater effect): right and left thalamus (q=0.0102, q=0.001), left pallidum (q=3.39e-04) for dilation ratio measures. Right and left thalamus (q=0.00144, q=1.69e-04), right pallidum (q=0.0012) and right caudate (q=4.76e-04) showed significant difference for radial thickness measures. P-maps localizing group differences are shown in Figure 1, and are consistent with previous findings in PPMI [3]. This study suggests that subcortical shape changes can be used as biomarkers for early detection of the disease.

Rivlin-Etzion M, Elias S, Heimer G, Bergman H: Computational physiology of the basal ganglia in Parkinson’s disease. Prog Brain Res 2010, 183:259-273.
Gutman BA, Jahanshad N, Ching CRK, Wang Y, Kochunov PV, Nichols TE, Thompson PM: Medial Demons Registration Localizes the Degree of Genetic Influence over Subcortical Shape Variability: An N= 1480 Meta-Analysis. International Symposium on Biomedical Imaging (ISBI 2015) 2015.
Garg A, Appel-Cresswell S, Popuri K, McKeown MJ, Beg MF: Morphological alterations in the caudate, putamen, pallidum, and thalamus in Parkinson’s disease. Frontiers in Neuroscience 2015, 9:101.
